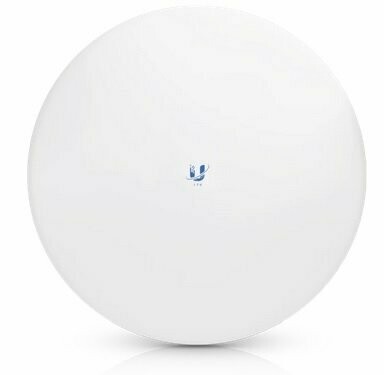

Ubiquiti LTU Pro (LTU-Pro)
€152,28
In stock
Product Details
- 5 GHz LTU™ Client Radio with Advanced RF Performance
- Proprietary Ubiquiti? LTU Processor
- Integrated 24 dBi Dish Antenna
- 10/20/30/40/50 MHz Channel Width Flexibility
Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti's proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
Features:
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Automatic power adjustments
- Router mode support
| LTU-Pro | |
| Dimensions | 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86") |
| Weight | 1.3 kg (2.87 lb) |
| Enclosure | Outdoor UV Stabilized Plastic |
| Networking Interface | 10/100/1000 Ethernet Port |
| Powering: | |
| Max. Power Consumption | 9W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8?) |
| Voltage Range | +22 to +26VDC |
| Operating Temperature | ?5 to 40? C (23 to 104? F) |
| Antenna: | |
| Max. Conducted TX Power | 22 dBm (per Chain) |
| Gain | 24 dBi |
| Beamwidth | 14? |
| Sidelobe Level | ?10 dB |
| Front?to?Back Ratio | 27 dB |
| Mounting | Pole?Mount (Kit Included) |
| Wind Loading | 150 N @ 200 km/h (33.72 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ? 24kV Contact/Air |
| Operating Frequency (MHz) | |
| Worldwide | 2400 - 2483.5* 4800 - 6200* |
| US/CA U-NII-1 U-NII-2 AU-NII-2C U-NII-3 |
5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 |
| Regulatory / Compliance Information | |
| Certifications | CE, FCC, IC |
